How to Choose a Battery Spot Welder for 18650 and 21700 Packs

Choosing the right battery spot welder is less about buying the highest advertised current and more about matching the machine to your cells, nickel strip, workflow, and safety requirements. This guide explains what matters when building or repairing 18650 and 21700 battery packs.

What is a battery spot welder?

A battery spot welder joins a nickel strip to a battery terminal with a short, controlled pulse of electrical energy. Unlike soldering directly to a cell, spot welding limits the time heat is applied to the battery. A clean weld should hold firmly without excessive discoloration, deep pits, or damage to the cell wrapper.

1. Match the welder to your strip thickness

Start with the material and thickness you actually plan to weld. Thin nickel-plated steel is easier to weld than pure nickel of the same thickness. Thicker strips require more stored energy, good electrode contact, and consistent pressure.

• Light repair work: thin tabs and occasional 18650 pack repairs.
• Regular battery building: repeated welds on 18650 or 21700 packs.
• High-current packs: thicker conductive material, larger packs, and a higher duty cycle.

Always test on scrap material first. Increase energy gradually until the weld passes a pull test without burning through the strip.

2. Do not choose by peak current alone

Peak-current figures can help compare machines, but they do not describe the complete welding result. Capacitor capacity, pulse timing, cable resistance, electrode condition, pressure, and the cleanliness of the workpiece all influence weld quality.

For portable and general battery work, see the AxonZelo 2400A portable supercapacitor spot welder. For demanding pack-building work, compare the AxonZelo 4000A dual-capacitor battery spot welder.

3. Look for adjustable pulse control

Adjustable output lets you tune the weld for different materials instead of using one setting for every job. Begin at a low setting, keep the electrodes perpendicular to the strip, apply even pressure, and make two well-spaced weld points. Record successful settings for each strip type so future work is repeatable.

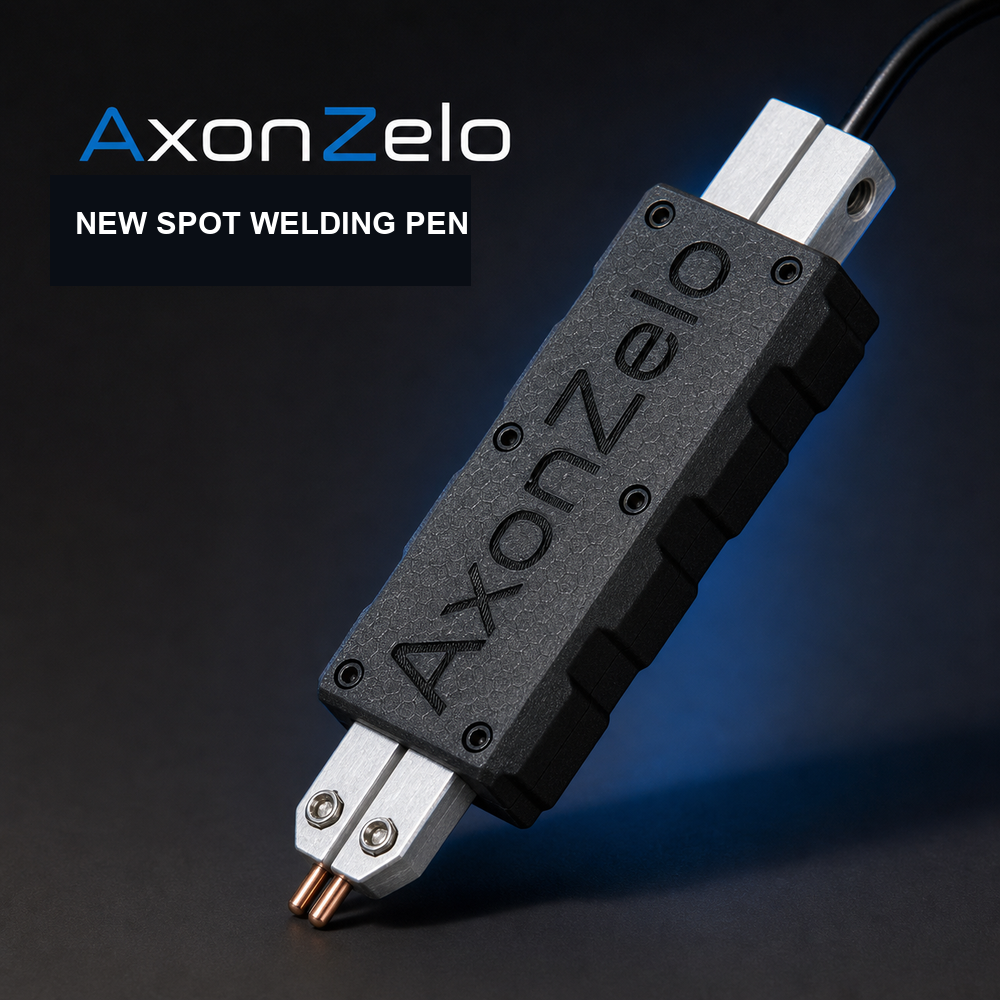

4. Check the welding pen, cable, and electrodes

High resistance in the welding path wastes energy and creates inconsistent results. Inspect cables, connectors, and electrode tips regularly. Loose connections, oxidized surfaces, worn tips, or uneven pressure can make a powerful welder perform poorly.

Consumable parts are easy to overlook. Replacement 3 mm spot-welding electrode tips, an 100 mm² high-current welding pen, and suitable 0.2 mm nickel-plated steel strip can help maintain a consistent setup.

5. Choose the right machine for your workflow

Use case	What to prioritize
Occasional battery repair	Portability, simple controls, and easy setup
Frequent 18650/21700 pack building	Repeatable pulse control, robust cables, and replaceable electrodes
Thicker strip or larger packs	Higher stored energy, low-resistance connections, and thermal management

Basic safety checklist

• Wear eye protection and remove metal jewelry.
• Inspect every cell for dents, corrosion, torn wraps, or leakage.
• Keep the work area dry and free of loose conductive objects.
• Confirm polarity before connecting cells into a pack.
• Never weld directly over a damaged cell or an exposed metal edge.
• Allow the welder, cables, and electrodes to cool during extended work.

For a complete operating procedure, read our step-by-step battery spot welder safety guide.

Frequently asked questions

Can one spot welder work with both 18650 and 21700 cells?

Yes. The cell format does not determine the setting by itself. Strip material, thickness, electrode contact, and pack design are more important. Test the planned combination before welding a full pack.

Is pure nickel the same as nickel-plated steel?

No. They differ in electrical resistance, corrosion behavior, and the energy required for a good weld. Verify the material specification instead of relying only on appearance.

How do I know whether a weld is strong enough?

Perform a controlled peel or pull test on a sample. A good weld normally leaves clear attachment points and resists separation without excessive burning or cell damage.

Which AxonZelo spot welder should I choose?

Choose according to your strip material, thickness, expected workload, and portability needs. If you are unsure, contact AxonZelo with photos of your cells and strip specification before ordering.

Final recommendation

The best battery spot welder is the one that produces repeatable welds on your actual material while keeping heat and operator risk under control. Compare the full AxonZelo spot-welding product range, start with conservative settings, and validate every new setup on scrap material.
